3-Wheeled Electric tricycle Series For The Leisure & Tourism Applications
Description:
NWOWN-ERV 48V20AH 350W 3-Wheeled Electric tricycle Series For The Leisure & Tourism Applications
Name:
NWOWN-ERV 48V20AH 350W 3-Wheeled Electric tricycle Series For The Leisure & Tourism Applications
Description:
ERV: the most classic recreational tricycle, authentically designed by NWOW; exquisite design and lovable looking pleases people;
Three wheels and low speed ensures safety;
easy to operate for all ages;

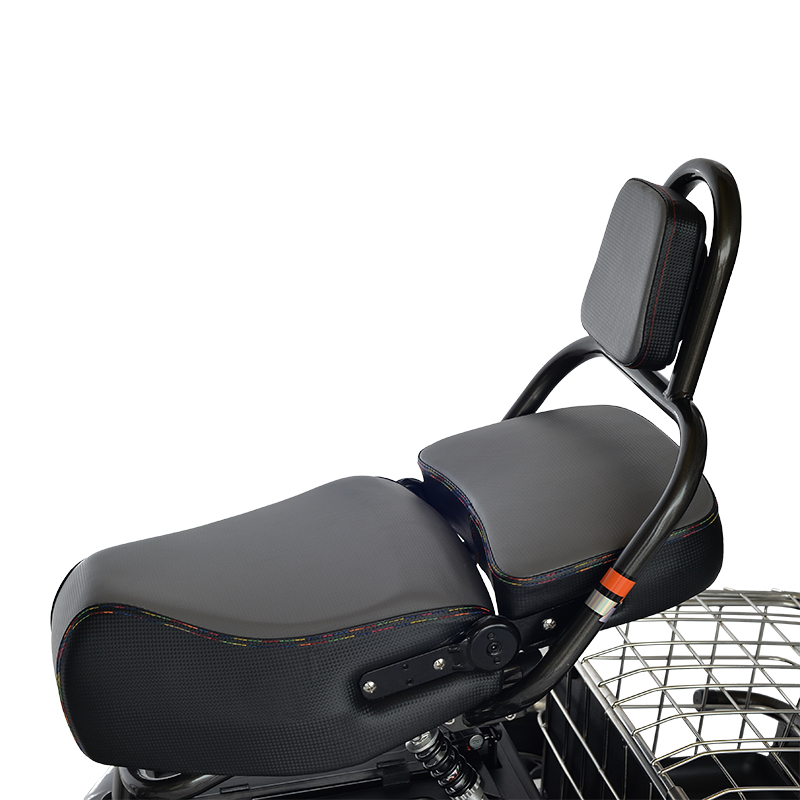

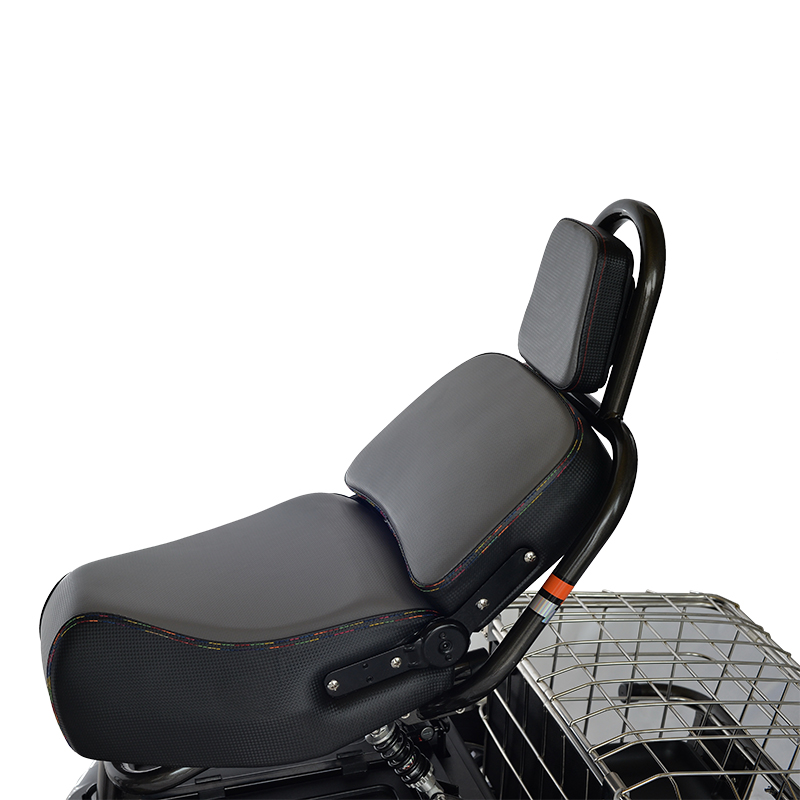

adjustable seat fit for personal needs;
reverse mode makes parking easy, front and back baskets can hold all personal belongings; powerful differential motor guarantees heavy loading and slope climbing;
Good for daily outing, daily shopping; perfect service choice for house wife, the aged and the disabled.
| （Model configuration list） | |||||
|
Electric bicycle Type |
： | ERV |
Battery Model |
： | 48V20AH (LEAD-ACID) |
|
External Dimension |
： | 1700*740*1050mm |
Charging Source |
： |
48V 3A Output voltage 48V，output current 3.0A |
|
Wheel Base |
： | 1150mm |
Top Speed |
： | 24~30KM/H |
|
Vehicle Weight |
： | 77kg（without battery） |
Endurance Mileage |
： | 50-60KM |
|
Maximum Load |
： | 200KG |
Anti-theft System |
： | （Alarm） |
|
Motor Type |
： | 48V25H350W |
Braking System |
： |
All Drum Brake |
|
Vqn |
： | 42±1V |
Front Shock |
： |
φ27 φ27 Hydraulic Damping |
|
Mpa |
： | 63±1V |
Back Shocks |
： |
200mm 200mm Hydraulic Damping |
|
ModelController Model |
： |
48V 28±1A DC48V， Maximum 28±1A |
Tire Size |
： | 16*2.5 / 2.75-10 |
|
Instrument |
： | （48V LCD) | |||
|
Colors |
： |
red、gray、orange、blue |
|||
